Motion Control – Select from the Large Variety of Precision XYZ Axis Stages to Suit Your Specific Application from Optimal Engineering Systems, Inc. (OES)!

Motion Control –  XYZ Axis Stages to Suit  Specific Applications!

motion control - custom stages
motion control - stages - custom

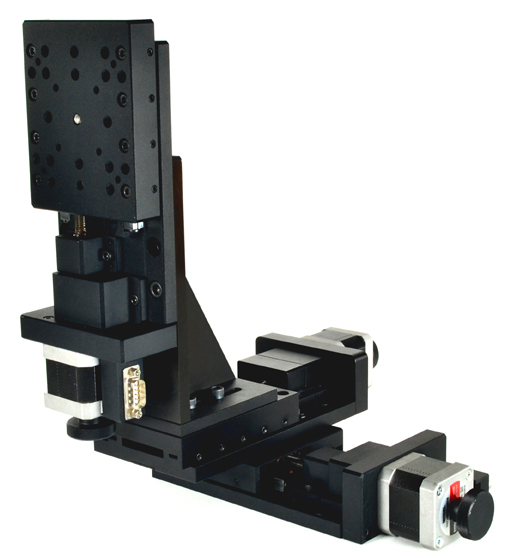

Van Nuys, CA – — Motion Control – OES (Optimal Engineering Systems) has introduced a series of high precision, low cost XYZ positioning stages that can be easily integrated into new and existing applications. They are offered in 5 travel lengths for each axis, 50 mm (1.969 in.), 100 mm (3.937 in.), 150 mm (5.906 in.), 200 mm (7.874 in.), and 300 mm (11.811 in.). Any combination of lengths, motors, and lead screws are available.

The two-phase stepper motors are standard with a knob for manual adjustment. The knob can be replaced with an incremental quadrature encoder for position verification.

An optional three-phase brushless servo motor with optical encoder is also offered for closed loop operation and higher operating speeds. The standard pitch of the lead screw is 4 mm that can be replaced with1 mm per turn lead screw for higher resolution.

These highly adaptable XYZ axis stages feature high precision steel linear ball bearings and hardened steel shafting, and each stage has a 3.543 in. by 3.543 in. (90 mm by 90 mm) table with a precise pattern of threaded mounting holes. These series is also offered with a locking brake for the Z-axis.

The stages are compatible with OES’ line of motion controllers and are available as a complete Plug-and-Play system. X and XY axis Linear Stages can also be specified.

About OES – Optimal Engineering Systems, Inc. (OES) is a manufacturer of motion control products including: Stepper motor controllers and drivers, solenoid electronics, and positioning stages and slides. Applications include: Animation, automated assembly systems, automation, CNC machines, flight simulation, inspection systems, linear and rotary stages, machine tools, medical devices, motion control camera boom systems, optical comparators, CMMs, pan-tilt gimbals, PCB assembly & inspection, pick-and-place, positioning stages, robotics, scanners, security cameras, telescope drive mechanisms, time-lapse photography and winders.

Some of the industries OES serves are: Aerospace, Astronomy, Chemical, Communications, Educational Institutes, University, Colleges, Government Agencies, National Labs, Manufacturing, Medical, Metrology, Military, Motion Control, Museum, News Agencies, Semiconductor and Test Equipment. Optimal Engineering Systems, Inc’s. competitive advantage is its state-of-the-art in-house manufacturing facility in North America enabling OES to supply clients with custom designed orders or high volume just-in-time deliveries globally.

For additional information, contact sales team at: OES, 6901 Woodley Ave.; Van Nuys, CA 91406; Telephone: 888-777-1826 or +1 818-222-9200, FAX +1 818-436-0446 or E-Mail: sales@oesincorp.com or visit the website at http://www.oesincorp.com
